-- The software is free --
The software has been realized for working with SDK of "Flight Simulator".
It must be installed in the same Computer where it run "Flight Simulator."
It is smaller ( 1M ) and it doesn't modify the performances of the Computer.
It is realized in Visual Basic.

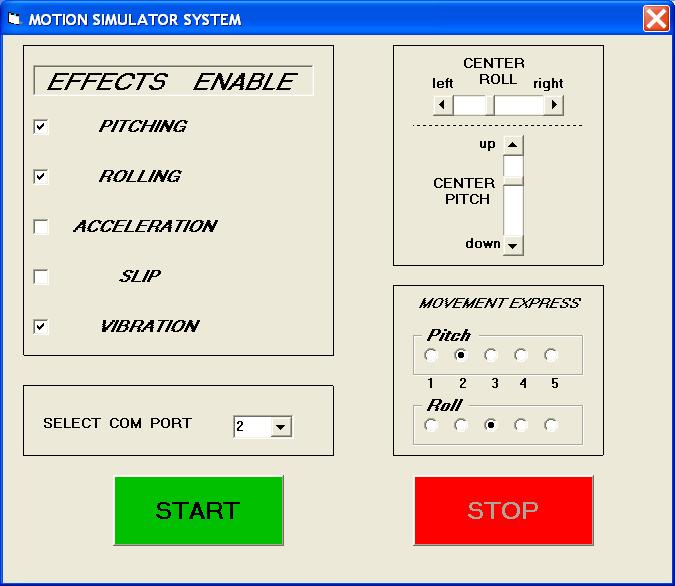

The software available it allows of:
1) To select the movements around two axis: pitch and rolling.
2)To choose the vibration of the seat (the frequencyz of vibration is proportional with motor turns).
3)To train the effect acelerazione and slip.
EXPLANATION
(sorry for my english)
Information to movements are obtained reading the values of : Pitch, Roll, Speed , RPMmotor ecc.. using SDK of "Flight Simulator". This method concurs of having all the real information of the flight, and of being able them to elaborate for realistic simulation .
--------------------------------------------------------------------------------------------------------------------------
If the cockpit is closed and the pilot does not see the outside:
1) for the rolling motion, checked "SLIP" selection, automatic unchecked "ROLL" selection. Therefore making the just movements are obtained in order to simulate the centrifugal forces.
2) for the pitch motion, checked "ACCELERATION" selection, automatic unchecked "PITCH"selection. Therefore making the just movements are obtained in order to simulate the acceleration forces.
------------------------
If the cockpit is open and the pilot sees outside:
it is necessary to create of the not real movements of system, otherwise the pilot has the feeling that the movements of system are mistake. It necessary to:
1) for the rolling motion, checked "ROLL" selection, automatic unchecked "SLIP" selection. The simulator will tilt him in refer to the angle of roll of the airplane.
2) for the pitch motion, checked "PITCH" selection, automatic unchecked "ACCELERATION" selection. The simulator will tilt him in refer to the angle of pitch of the airplane.
--------------------------
It possible to disable the movement of Pitch and/or Roll and/or Vibration , unchecked correspondent selection.
-------------------------------------------------------------------------------------------
Checked "VIBRATION" to send a information of vibration frequency to BASS- SHAKER which is fixed to the seat and creates the vibration feeling when the motors are ignited. The vibration increases if the number of turns of the motor increasing .
----------------------------------------------------------------------------------------------
It is important to select Serial Port of comunication where you have insert cable of System Motion.
------------------------------------
If the encoder of the two axis they are not perfect aligns to you, it is possible to fix to the position of the pitch and rolling through the program.
Council not to align through the software if the encoder they are too much disaligns to you. in this case it is better to modify pulling of the encoder.
------------------------------------
It is possible to modify the movement express of single axis: pitch and rolling, based on the choice of the type of airplane .
example:
For Boeing 747 to select low values 1 or 2
For Cessna 172 to select values from 2 to 3
For Extra selecting values from 4 to 5
Instruction for installation
The software use the Library FSConnect.ddl with gets loaded by Microsoft Flight Simulator (MSFS) and runs in it's address space. It interacts with third-party programs (clients), providing data regarding the user aircraft.
This file is creat by Russel Dirks " www.dirks-software.ca " .
Download the file from the link : www.dirks-software.ca/downloads/fsc300.zip
It install the file FSConnect.dll in folder "Modules" to the inside folder "Flight Simulator 9"
Extract PROGR.zip in same folder and run MOTION SIMULATOR SYSTEM.exe and FS2004.
