I have made to realize to a blacksmith the 3 essential components of the structure that the movement guarantees.





I have chosen an outlined in iron of rectangular section 30x15 mm.

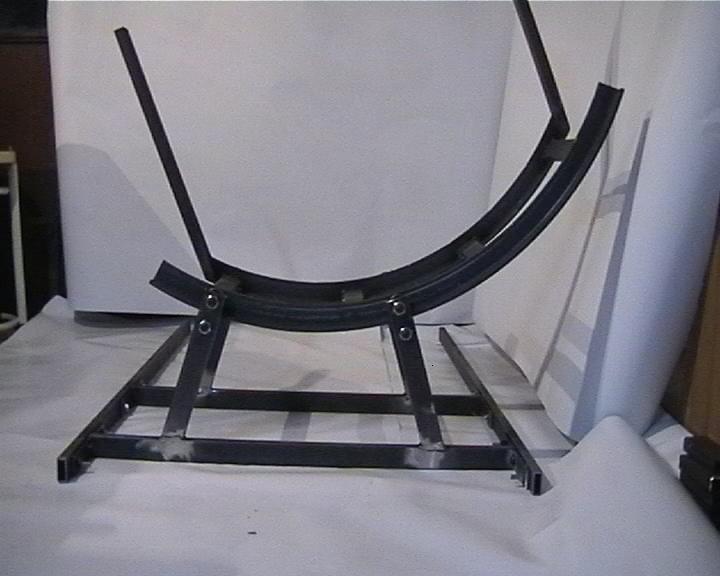

Photo give they are noticed the bearing that make to flow the crib on the base.






























An example of the movement of rolling.





















The following photos have been made on the prototype.











Sees anterior side



















Sees anterior side























Sees anterior side



















Sees back side
















These are the photos of the new prototype with the measures modified for the cockpit f-16.









The outlined of iron is of oval section.















He must be paints still.









































An example of movement of rolling to the left.



















A seat of Go-Kart can be used.



















































On mobile the system I will insert the cockpit of the F-16 .
